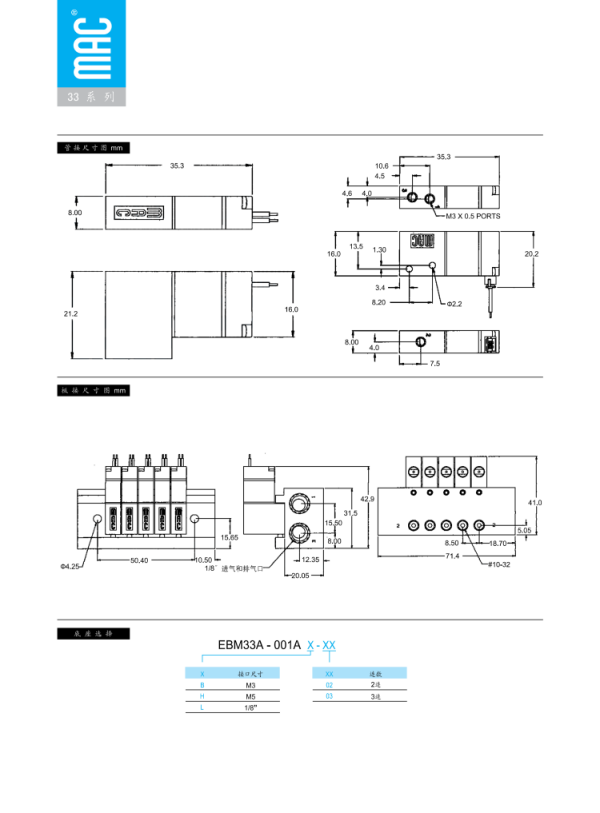

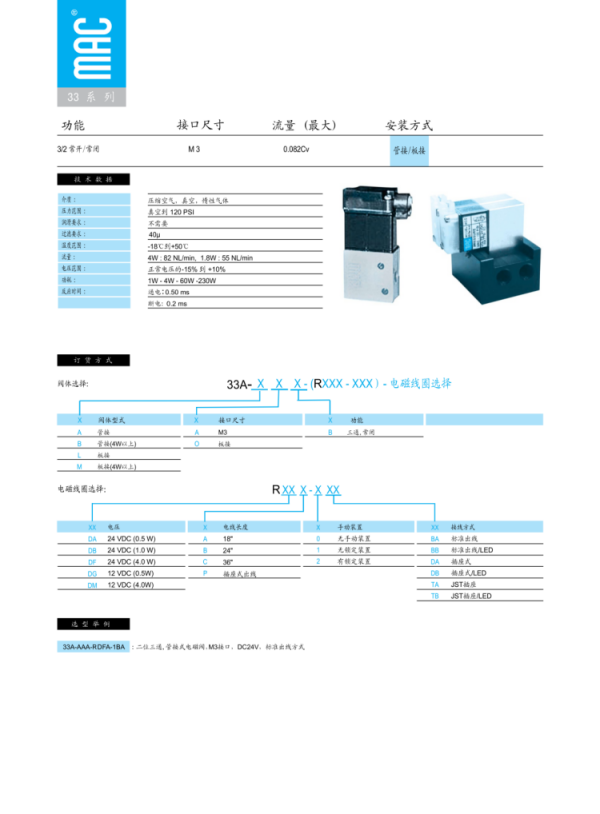

33系列图片请点击
直动式小三通阀,接口M3,MAC独有的短行程线圈,平衡式阀芯和强有力的复位弹簧,联接方式:管接联接。MAC独有的椭圆形线圈,拥有更大换向力。8MM厚度里有CV0.08的大流量。
The Mac 33 series is a direct solenoid operated 3-way - 8mm - poppet
valve. A direct operated 3-way of this size with such high flow is
unique to MAC due to patented design innovations. It features an
oval armature in the solenoid, a balanced poppet and powerful return
spring. These features translate into high shifting forces, fast
consistent response times, high flow in a small package and long
life. For information regarding certifications (such as UL, CSA,
RoHS, and CE) please visit the Get
Support pages on our
website.
Cv (Max): 0.08
Port Sizes: M3
Configurations: Inline - Manifold: Plug-in/Non Plug-in
|
