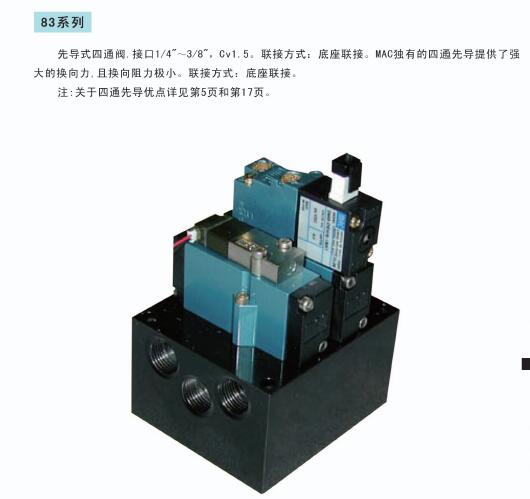

The MAC 83 Series is a 4-way balanced spool valve piloted by a small
direct operated 4-way solenoid pilot - a one-off in air valve
manufacturing. The 4-way pilot means a low minimum operating
pressure - no pistons or springs - and minimal resistance to
shifting. The balanced design in the pilot means shifting forces are
consistently high and response times are repeatable regardless of
inlet pressure fluctuations. For more information regarding
certifications (such as UL, CSA, RoHS and CE) please visit the Get
Support pages on our website.
Application, Installation and
Service Precautions
Cv (Max): 1.5
Port Sizes: 1/4" - 3/8"
Configurations: Individual Sub base/Manifold: Non Plug-in
83 Series Catalog Pages
83 Series Circuit Bar Pages
83 Series Regulator Pages
83 Series Remote Air Pages(英文详细资料请点击下载)
|
