6600系列图片请点击查看

先导式四通阀。

接口3/4"～1-1/4"。

可选择插入式接线，电连接更安全。

有本质防爆阀。

（点击中文资料）

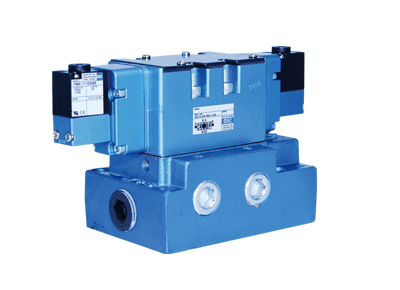

The MAC 6600 Series is a versatile 4-way solenoid piloted spool valve. This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure flucuations. Our balanced spool means the valve can be piped as a 4-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications. Our one piece bonded seal spool means longer life and easy maintenance. For information certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.

Application, Installation and Service Precautions
Cv (Max): 9.6
Port Sizes: 3/4"-1"
Configurations: Individual Sub-base/Manifold: Plug-in/Non Plug-in
6600 Series Catalog Pages
6600 Series Remote Air Pages
6600 Series Intrinsically Safe Pages（英文详细资料请点击下载）
