93系列图片请点击查看
先导式四通阀。接口1/4"~1/2"。
可叠加调压阀,可支持双压力,可叠加流量调节阀。
拥有MAConnect电连接方式和阀岛组合. 有气控阀选择。
可选择插入式接线,电连接更安全。
(点击中文资料)

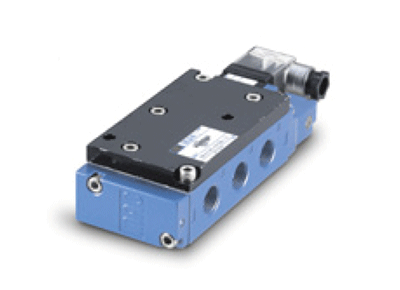

The MAC 93 Series is a 4-way spool valve pilot
operated by a small direct operated 4-way solenoid valve - an
exclusive in valve manufacturing. The 4-way pilot means a low
minimum operating pressure - no pistons - and minimal resistance to
shifting. The balanced design in the pilot means shifting forces are
consistently high and response times are repeatable regardless of
inlet pressure fluctuations. For information regarding
certifications (such as UL, CSA, RoHS and CE) please visit the Get
Support pages on our website.
Application, Installation and Service
Precautions
Cv (Max): 3.8
Port Sizes: 3/8"-1/2"
Configurations: Inline - Manifold: Plug-in/Non Plug-in - Stacking
93 Series Catalog Pages
93 Series Regulator Pages
93 Series MAConnect Pages(英文详细资料请点击下载)
|
