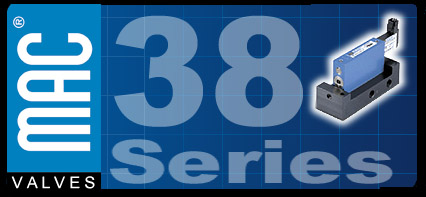

The MAC 38 Series is a high flow 16mm 3-way
spool valve with a unique integral four way pilot. The short stroke
solenoid utilizes an oval armature for maximized shifting forces in
a small area. The 4-way pilot means a low minimum operating pressure
- no pistons - and minimal resistance to shifting. The balanced
design in the pilot means shifting forces are consistently high and
response times are repeatable regardless of inlet pressure
fluctuations. For information regarding certifications (such as UL,
CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service
Precautions
Cv (Max): 1.2
Port Sizes: 1/8"-1/4"
Configurations: Individual Sub Base/Manifold: Plug-in/Non Plug-in
