59系列图片请点击

先导式三通阀.接口1/2"~2-1/2"。

联接方式:管式联接。可根据需要自行转换内、外先导。可根据需要自行转换
常开、常闭。MAC独有的单向蓄能装置,换向可靠。有防爆阀,有本质防爆阀。

注1:内、外先导转换,常开、常闭转换请参见第45页。

注2:防爆阀的防爆等级请参见第22页


(点击下载中文资料)

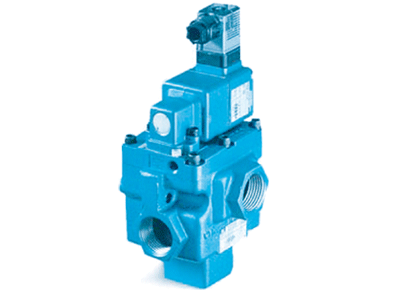

The MAC 59 Series is a 3-way balanced spool valve piloted by our 200 series (which means this large 3-way valve can also be ordered with the 200 series Hazardous Location version as a pilot - giving it the same standard). This is an extremely versatile valve: 1. It can be converted for use in vacuum. 2. It can be changed from a Normally Closed function to a Normally Open function by simply rotating a function plate between the pilot and the main valve bodies. 3. It can also be converted to a remote air operated valve by removing the solenoid pilot assembly - just to name a few. For information regarding certifications (such as CL, CSA, RoHS and CE) please visit the Get Support pages on our website.

Application, Installation and Service Precautions
Cv (Max): 60
Port Sizes: 2"-2 1/2"
Configurations: Individual Inline
59 Series Catalog Pages
59 Series Remote Air Pages
(英文详细资料请点击下载)
