先导式三通阀。接口1"~1-1/2"。
联接方式:管式联接。MAC独有的四通先导提供了强大的换向力,且换向阻力极小。MAC独有的椭圆形线圈,拥有更大换向力。
注1:关于四通先导优点详见第5页和第17页。
注2:关于椭圆线圈优点详见第4页。

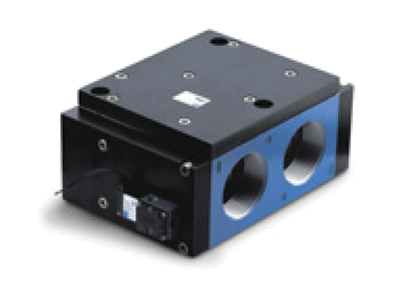

The MAC 69 Series is a 3-way balanced spool
valve piloted by a small direct operated 4-way solenoid pilot - a
one-off in air valve manufacturing. The 4-way pilot means a low
minimum operating pressure - no pistons or springs - and minimal
resistance to shifting. The balanced design in the pilot means
shifting forces are consistently high and response times are
repeatable regardless of inlet pressure fluctuations. For
information regarding certifications (such as UL, CSA, RoHS and CE)
please visit the Get Support pages on our website.
Application, Installation and Service
Precautions
Cv (Max): 60
Port Sizes: 1 1/2"-2 1/2"
Configurations: Individual Inline/Manifold
69 Series Catalog Pages
69 Series Remote Air Pages(英文详细资料请点击下载)
|
