35系列图片请点击

直动式小三通阀。接口M5～1/8"。MAC经典系列，应用最广泛。MAC独有的短行程线圈，平衡式阀芯和强有力的复位弹簧。平衡式结构，一阀六用。
联接方式：管式联接、串连联接、板式联接。有本质防爆阀。拥有MAConnect电连接方式和阀岛组合。

（中文样本资料）

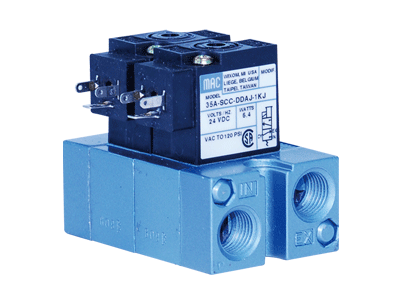

The MAC 35 series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, and long life. Our unique balanced design means virsatility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, divertor or selector applications. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.

Application, Installation and Service Precautions

Cv (Max): 0.17

Port Size: 1/8"

Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in

35 Series Catalog Pages

35 Series Circuit Bar Pages

35 Series Regulator Pages

35 Series Remote Air Pages

35 Series Intrinsically Safe Pages（英文详细资料请点击下载）
