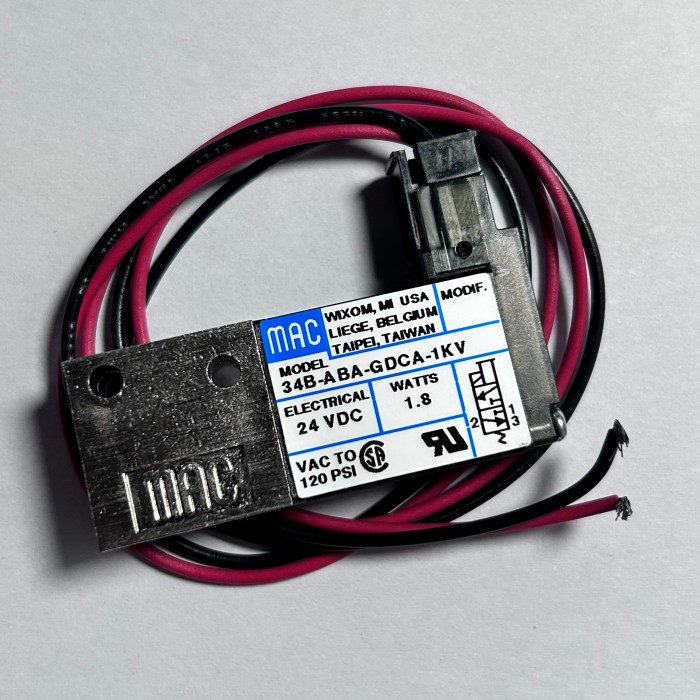

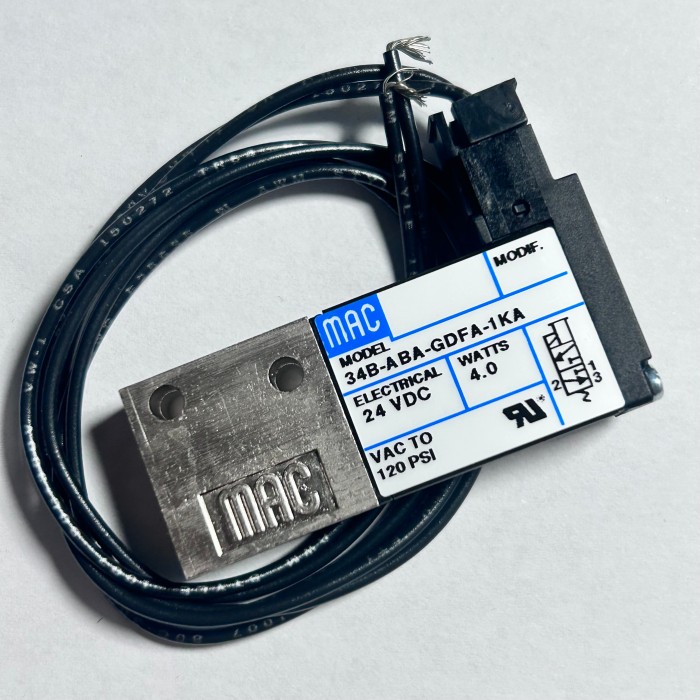

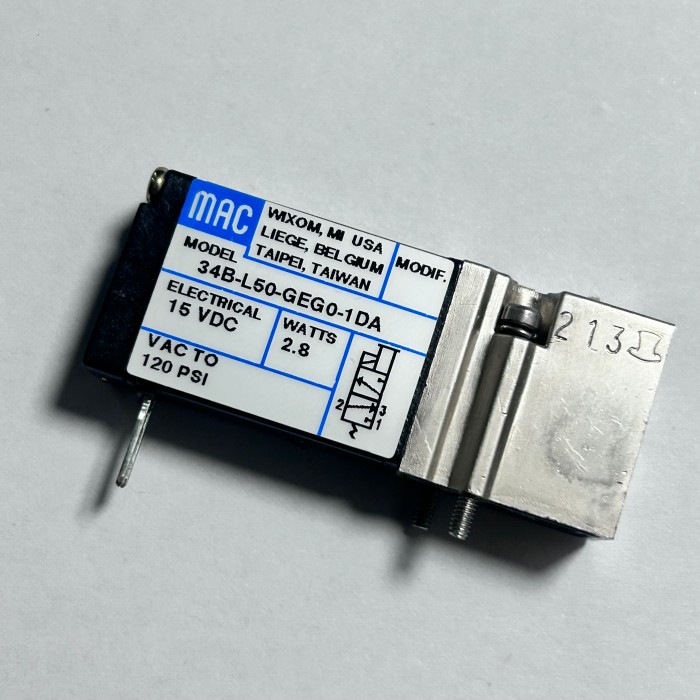

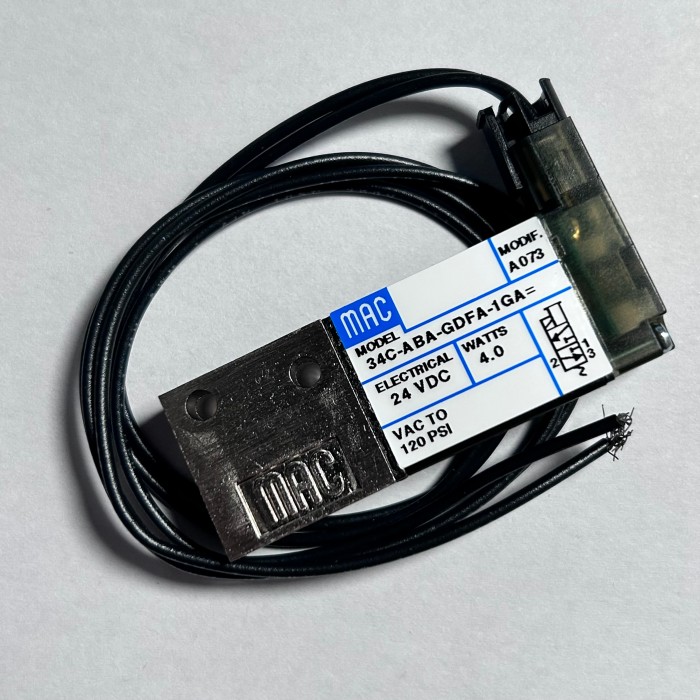

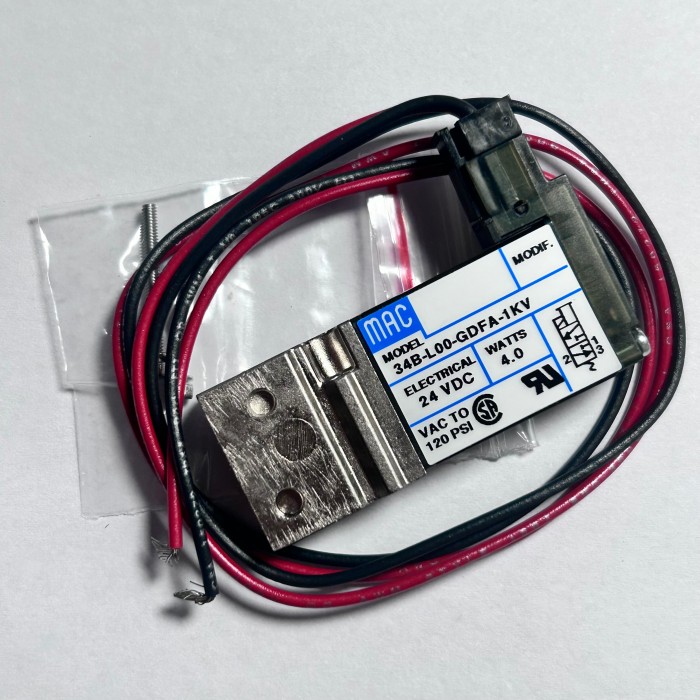

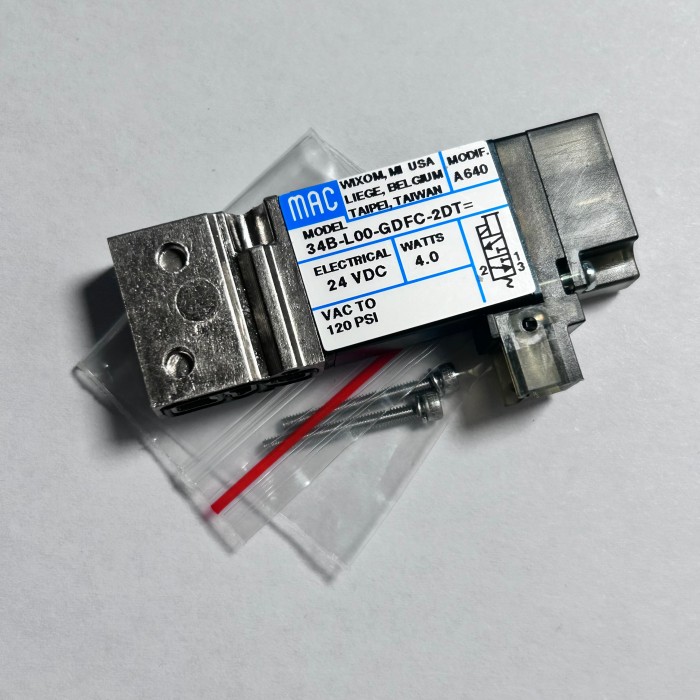

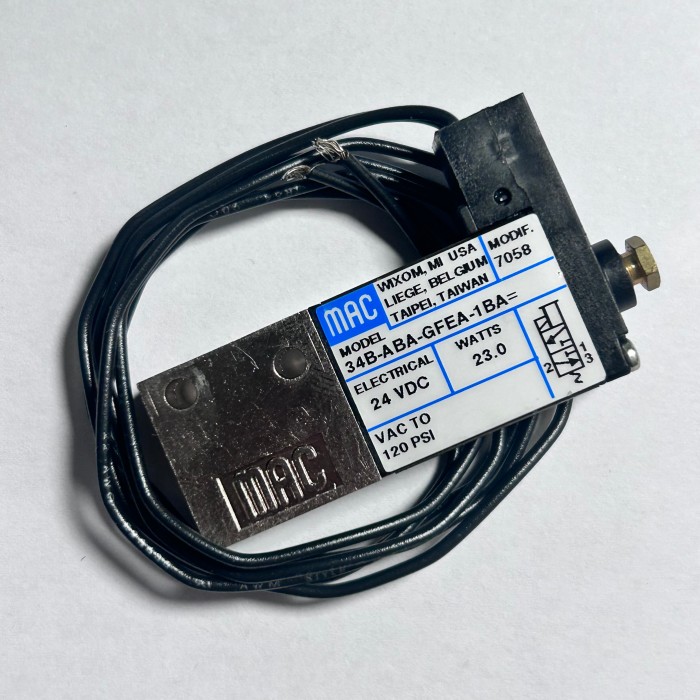

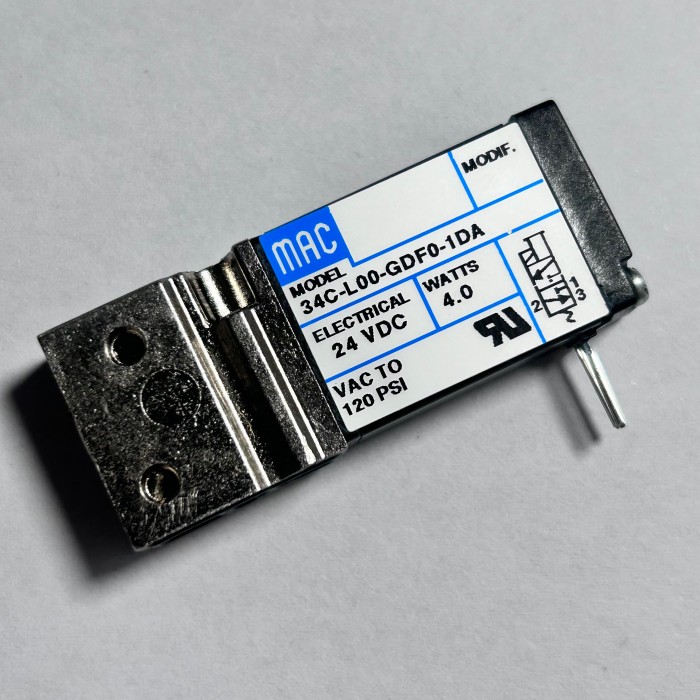

34系列图片请点击
直动式小三通阀。接口M5。
联接方式:管式联接、板式联接。MAC独有的椭圆形线圈,拥有更大换向力。10MM厚度却能有Cv0.12的大流量。
(中文样本资料)

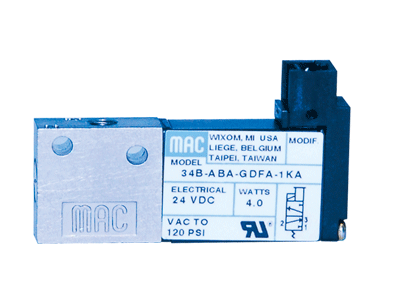

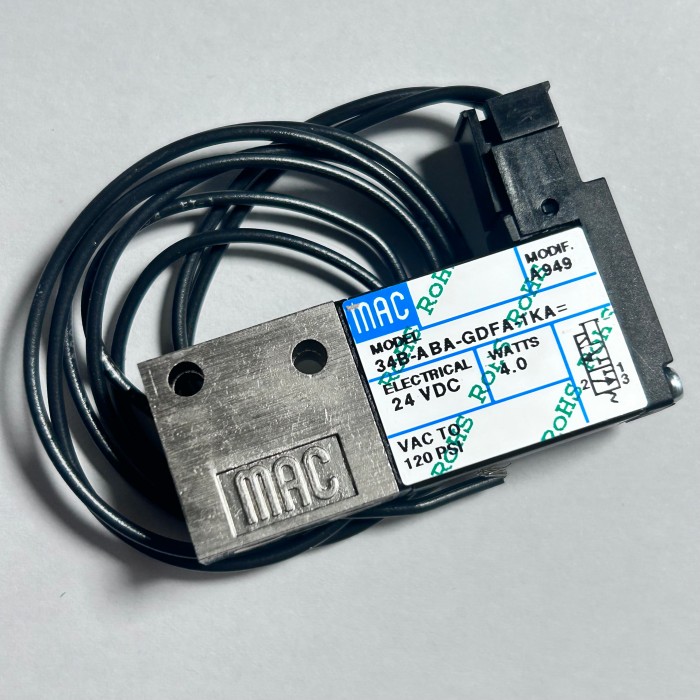

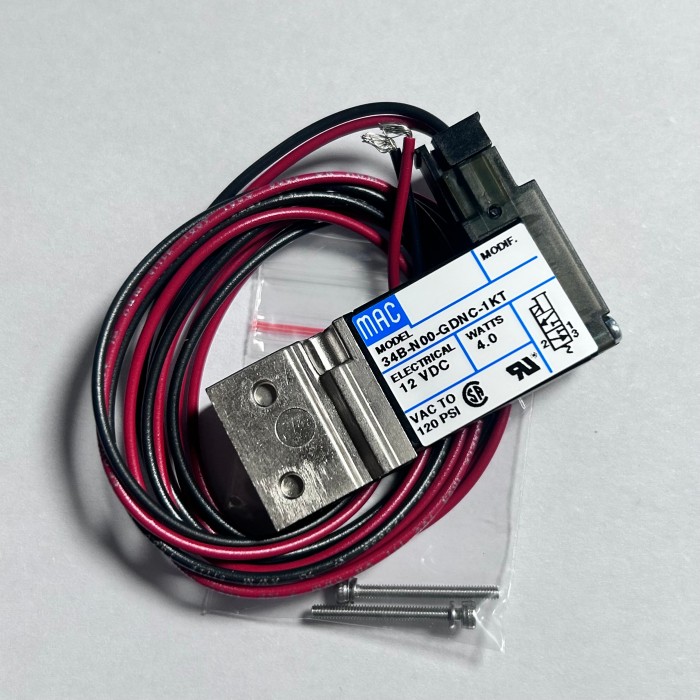

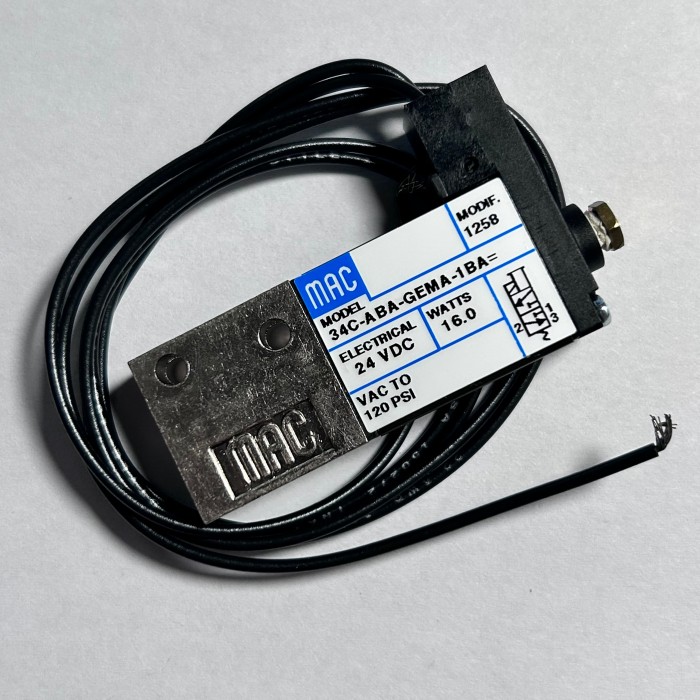

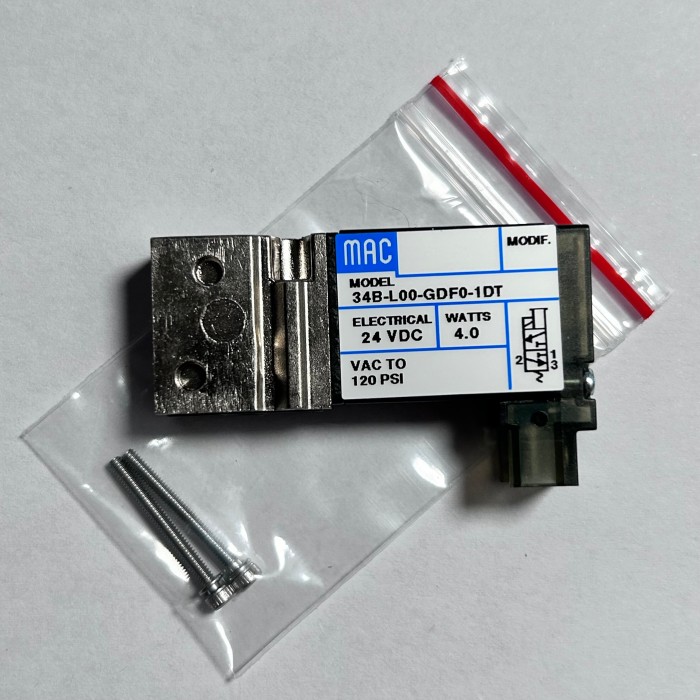

The Mac 34 series is a direct solenoid
operated 3-way - 10mm - poppet valve. A direct operated 3-way of
this size with such high flow is unique to MAC due to patented
design innovations. It features an oval armature in the solenoid, a
balanced poppet and powerful return spring. These features translate
into high shifting forces, fast consistent response times, high flow
in a small package and long life. For information regarding
certifications (such as UL, CSA, RoHS, and CE) please visit the Get
Support pages on our website.
Application, Installation and Service
Precautions
Cv (Max): 0.12
Port Sizes: M5-10-32
Configurations: Manifold: Plug-in/Non Plug-in

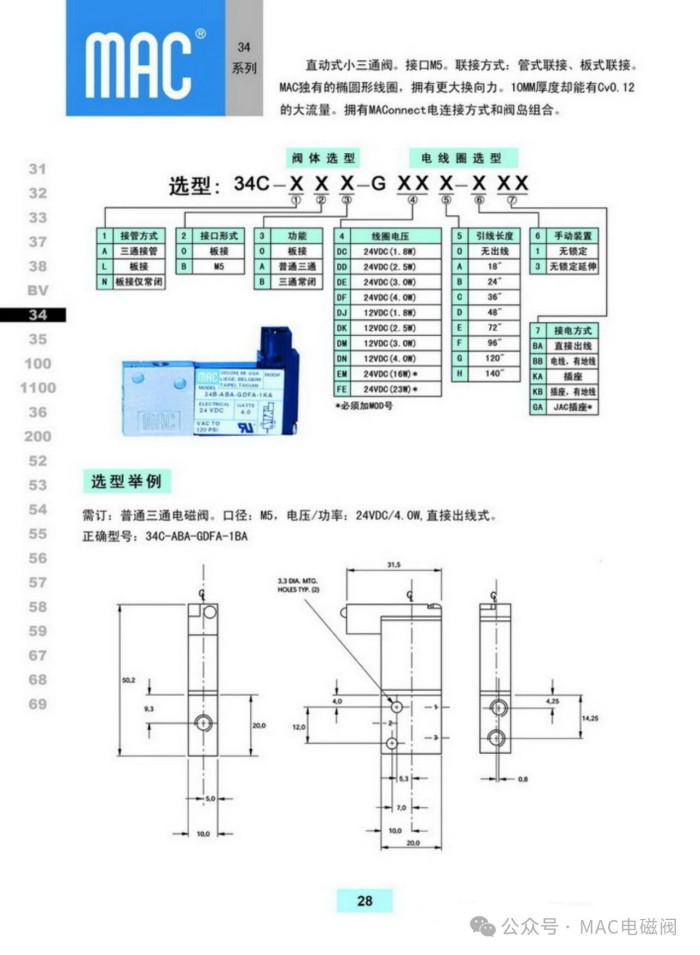

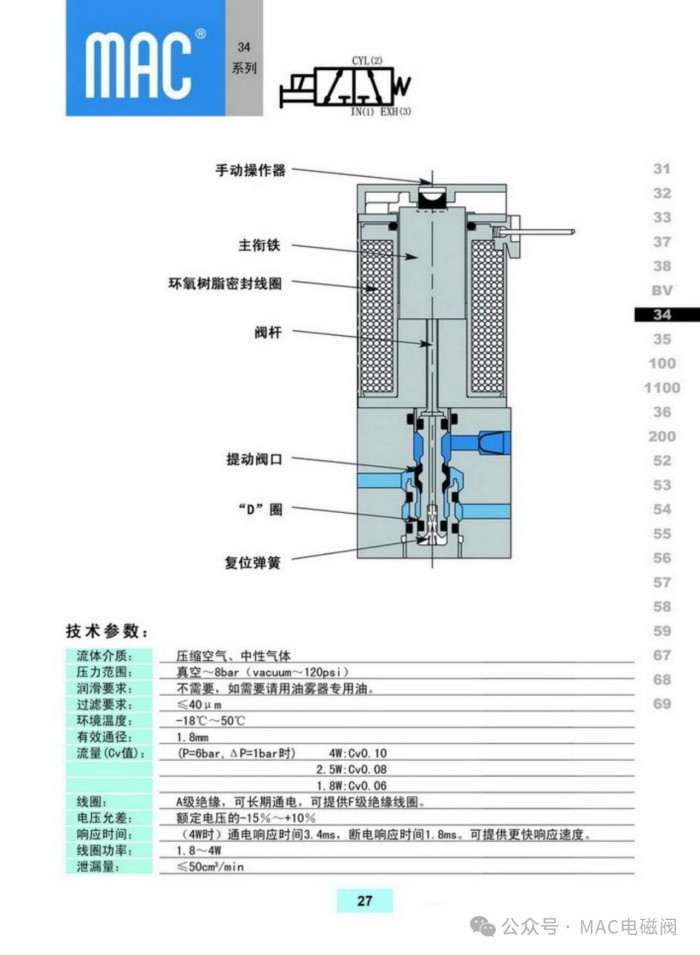

34 Series Catalog Pages
34 Series Circuit Bar Pages
34 Series Regulator Pages(英文详细资料请点击下载)
|
