400系列图片请点击

先导式四通阀。接口1/8"～1/4"。MAC独有的四通先导提供了强大的换向力，且换向阻力极小。

联接方式：管式联接、板式联接。有本质防爆阀。

注：关于四通先导优点详见第5页和第17页。

（点击中文资料）

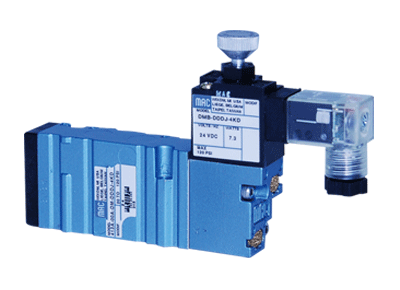

The MAC 400 Series is a 4-way spool valve pilot operated by a small direct operated 4-way solenoid valve - a one-off in air valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.

Application, Installation and Service Precautions
Cv (Max): 1.1
Port Sizes: 1/8"-1/4"
Configurations: Inline - Manifold: Plug-in/Non Plug-in
400 Series Catalog Pages
400 Series Circuit Bar Pages
400 Series Remote Air Pages（英文详细资料请点击下载）
