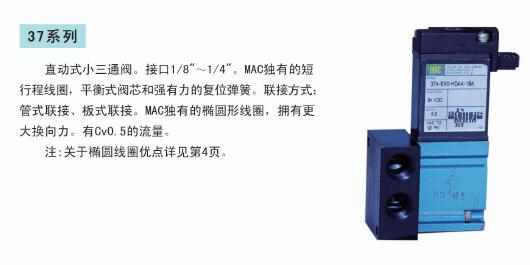

直动式小三通阀。接口1/8"~1/4"。MAC独有的短行程线圈,平衡式阀芯和强有力的复位弹簧。联接方式:管式联接、板式联接。MAC独有的椭圆形线圈,拥有更大换向力。有Cv0.5的流量。
注:关于椭圆线圈优点详见第4页。

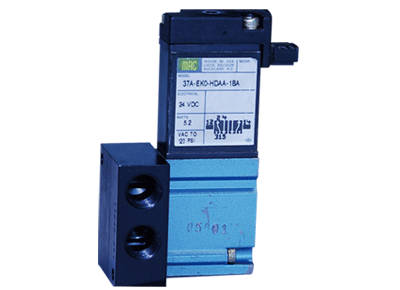

The MAC 37 Series is a high flow direct
solenoid operated 3-way poppet valve. It features a short stroke
solenoid with oval armature, a balanced poppet and powerful return
spring. These features translate into high shifting forces, fast
consistent response times, high flow in a small package and long
life. For information regarding certifications (such as UL, CSA,
RoHS and CE) please visit the Get Support pages of our website.
Application, Installation and Service Precautions
Cv (Max): 0.50
Port Sizes: 1/8"-1/4"
Configurations: Inline - Individual Sub Base/Manifold: Plug-in/Non
Plug-in
