800系列图片请点击

先导式四通阀。接口1/4"～3/8"。

联接方式：管式联接、串连联接。可选择防爆阀。有本质防爆阀 。可选择流量调节。

注1：管式联接

3/8"请在原1/4"型号后加MOD0358。

注2：选择NAMUR安装形式请在原型号后加MOD1080。

注3：选用压力为14bar（200psi）时，必须选择外先导式。，先导压力1.4～10bar(20～150psi)

（点击中文资料）

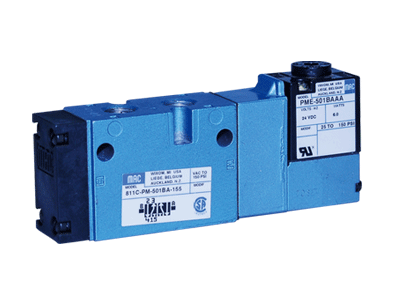

The MAC 800 Series is a versatile 4-way solenoid piloted spool valve. This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure flucuations. Our balanced spool means the valve can be piped as a 4-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications. Our one piece bonded seal spool means longer life and easy maintenance. For information certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.

Application, Installation and Service Precautions
Cv (Max): 1.4
Port Size: 1/4"
Configurations: Inline - Manifold: Non Plug-in - Stacking
800 Series Catalog Pages
800 Series Circuit Bar Pages
800 Series Intrinsically Safe Pages（英文详细资料请点击下载）
