46系列产品图片请点击
直动式小四通阀。接口1/8"。MAC独有的短行程线圈,平衡式阀芯和强有力的复位弹簧.
联接方式:管式联接、串连联接、板式联接。MAC独有的椭圆形线圈,拥有更大换向力。有Cv0.3的流量。可叠加调压阀。可选择流量调节阀。拥有MAConnect电连接方式和阀岛组合。
(中文样本资料请点击)

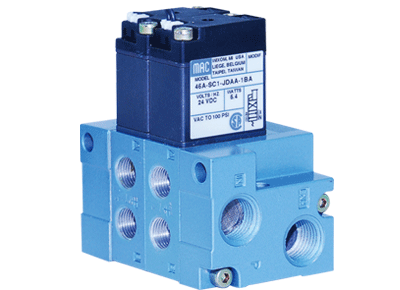

The MAC 46 Series is a high flow direct
solenoid operated 4-way poppet valve. It features a short stroke
solenoid with oval armature, a balanced poppet and conical seats.
These features translate into high shifting forces, fast consistent
response times, high flow in a small package and long life. For
information regarding certifications (such as UL, CSA, RoHS and CE)
please visit the Get Support pages on our website.
Application, Installation and Service
Precautions
Cv (Max): 0.30
Port Sizes: 1/8"-#10-32
Configurations: Inline - Manifold: Plug-in/Non Plug-in - Stacking
46 Series Catalog Pages
46 MAConnect Pages
46 Double MAConnect Pages
46 Regulator Pages(英文详细资料请点击下载)
|
