58系列图片请点击
先导式三通阀.接口1/2"～2-1/2"。
联接方式：管式联接。可根据需要自行转换内、外先导。可根据需要自行转换
常开、常闭。MAC独有的单向蓄能装置，换向可靠。有防爆阀，有本质防爆阀。
注1：内、外先导转换，常开、常闭转换请参见第45页。
注2：防爆阀的防爆等级请参见第22页
 （点击下载中文资料）

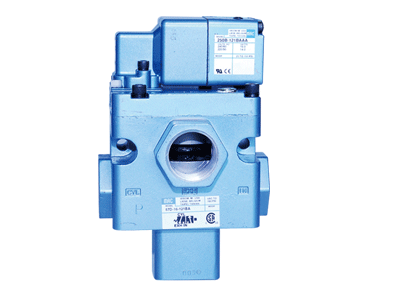

The MAC 58 Series is a 3-way balanced spool
valve piloted by our 200 series (which means this large 3-way valve
can also be ordered with the 200 series Hazardous Location version
as a pilot - giving it the same standard). This is an extremely
versatile valve: 1. It can be converted for use in vacuum. 2. It can
be changed from a Normally Closed function to a Normally Open
function by simply rotating a function plate between the pilot and
the main valve bodies. 3. It can also be converted to a remote air
operated valve by removing the solenoid pilot assembly - just to
name a few. For information regarding certifications (such as CL,
CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service
Precautions
Cv (Max): 26
Port Sizes: 1"-1 1/2"
Configurations: Individual Inline
58 Series Catalog Pages
58 Series Remote Air Pages（英文详细资料请点击下载）
|
